SIEMENS 7PV0732-1AV20 TIMER TIMING 0.1S-999H VOLTAGE 20-240VAC/DC

Category:

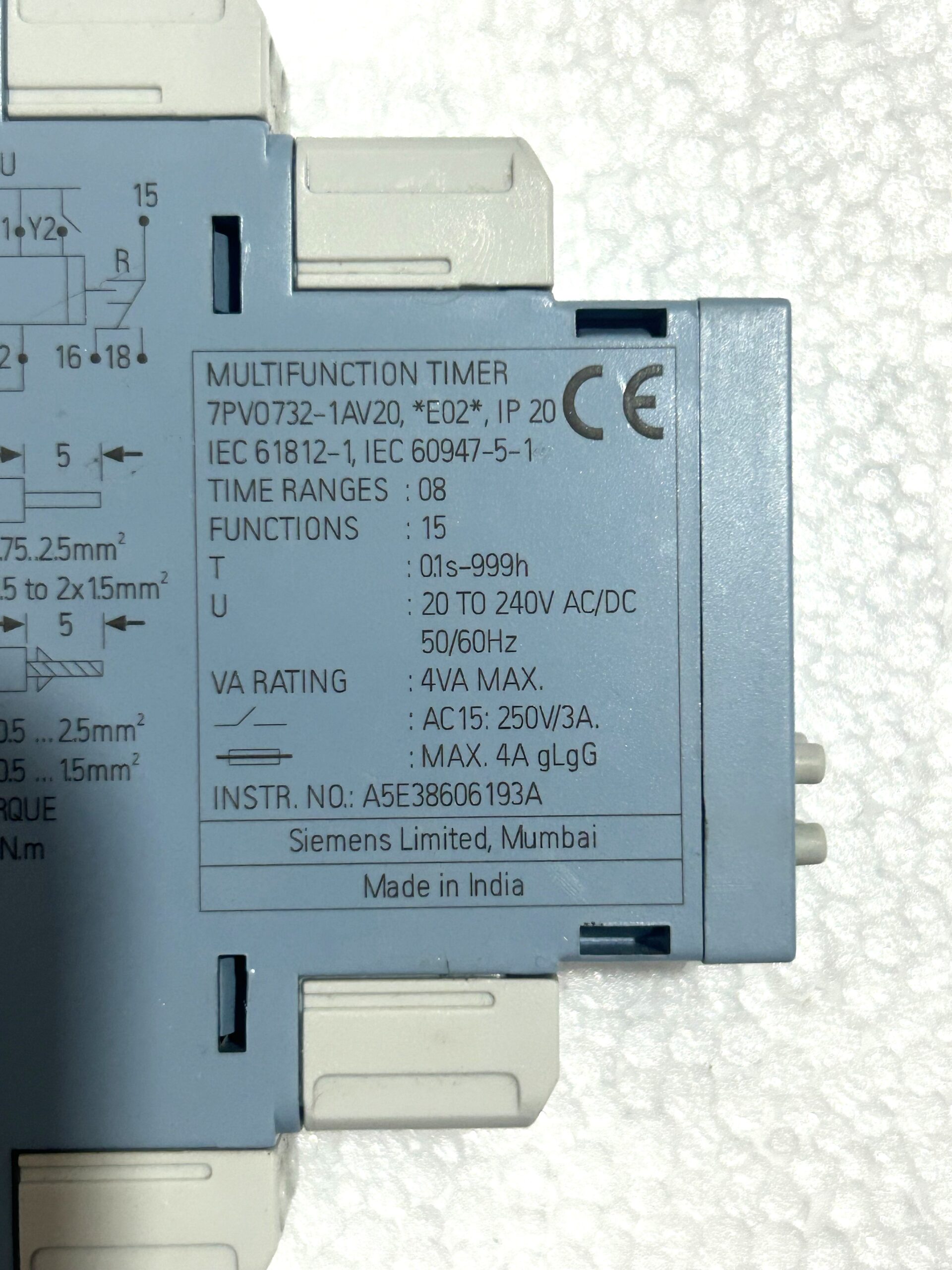

SIEMENS 7PV0732-1AV20 TIMER TIMING 0.1S-999H VOLTAGE 20-240VAC/DC

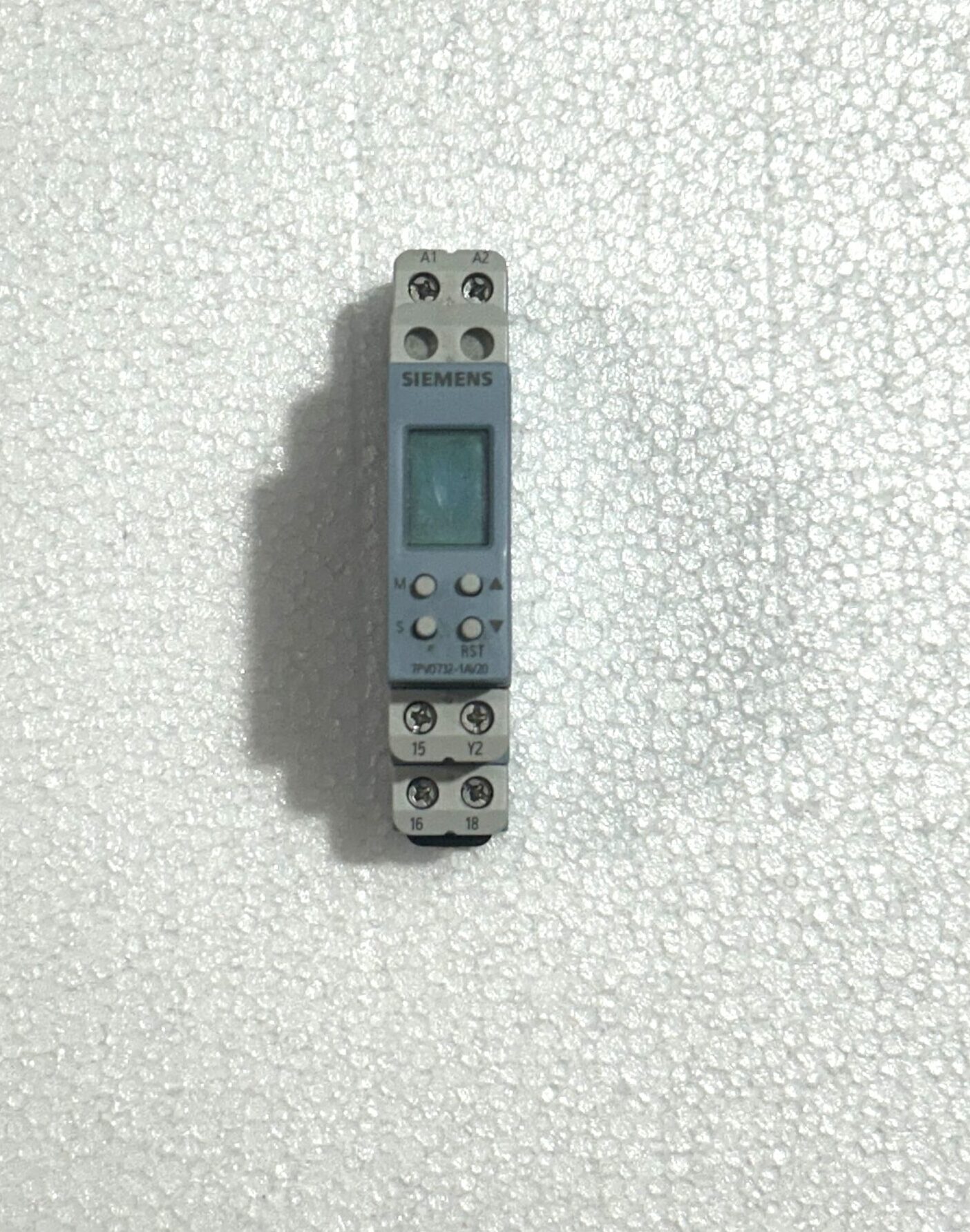

SIEMENS 7PV0732-1AV20 TIMER TIMING 0.1S-999H VOLTAGE 20-240VAC/DC - Image 2

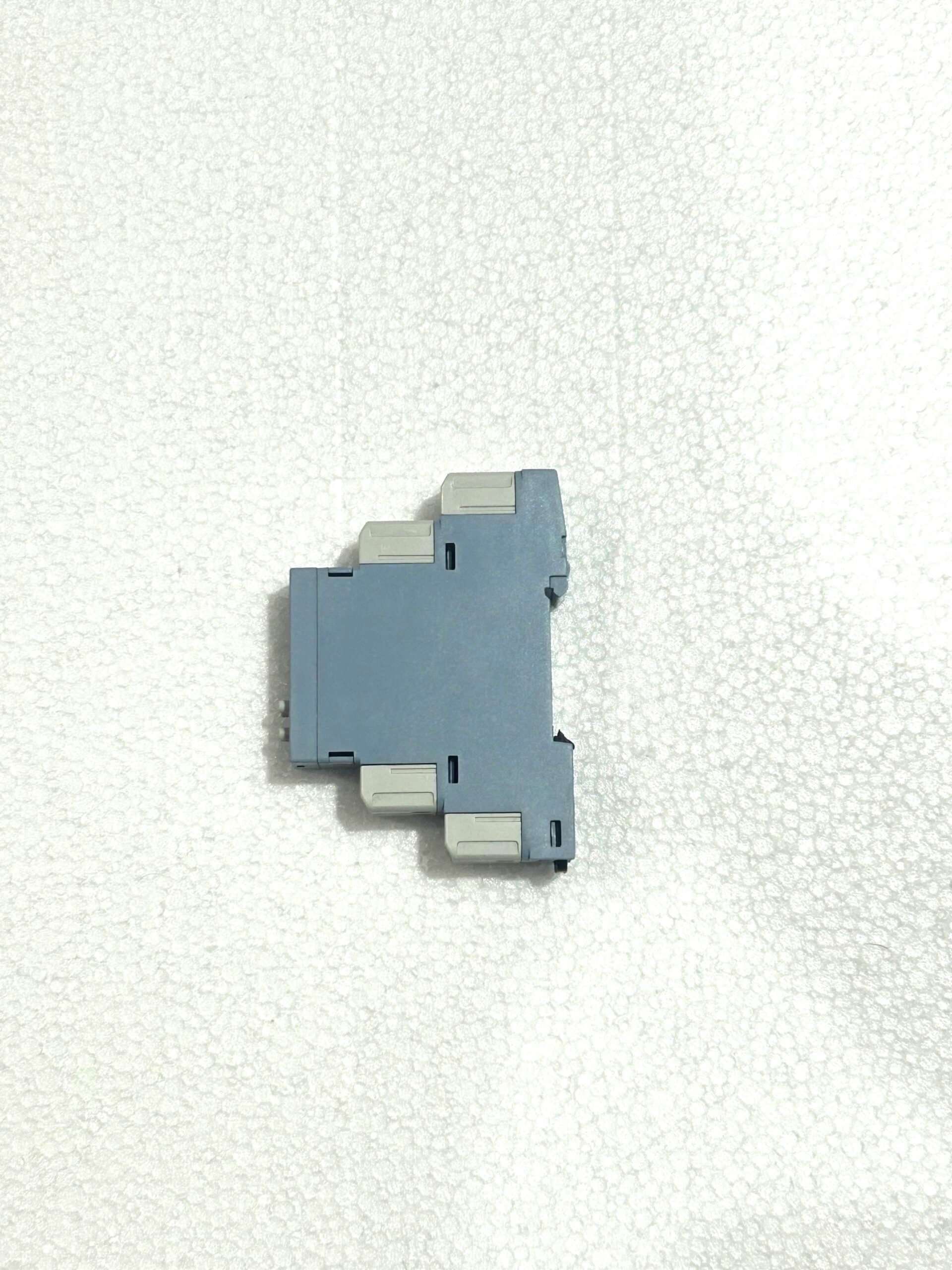

SIEMENS 7PV0732-1AV20 TIMER TIMING 0.1S-999H VOLTAGE 20-240VAC/DC - Image 3

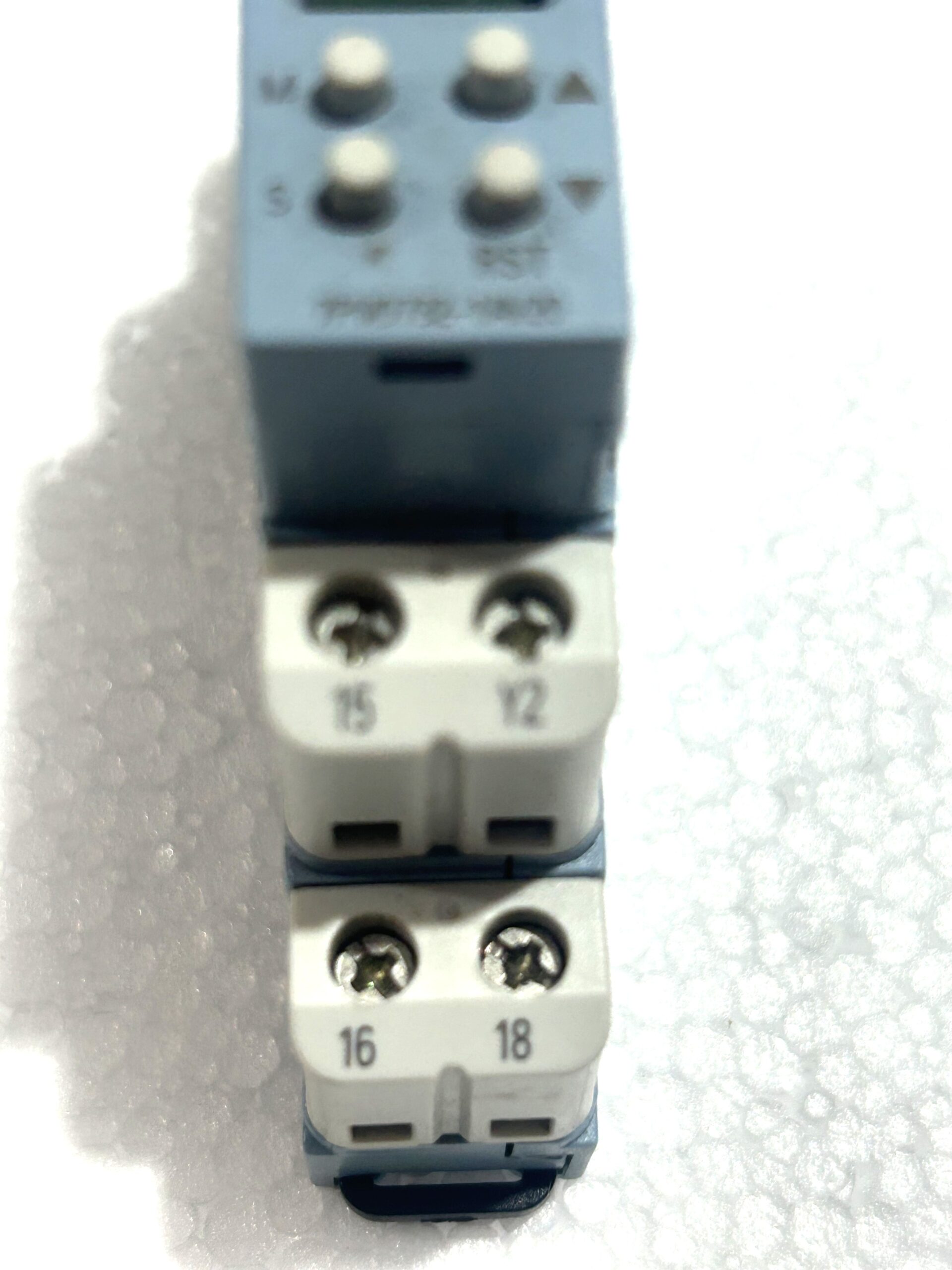

SIEMENS 7PV0732-1AV20 TIMER TIMING 0.1S-999H VOLTAGE 20-240VAC/DC - Image 4

Availability: In Stock

Key Features

  • Manufacturer: Siemens
  • Model: 7PV0732-1AV20
  • Product Type: Multifunction Electronic Timer Relay
  • Supply Voltage: 20–240 V AC/DC
  • Frequency: 50/60 Hz (AC)
  • Time Setting Range: 0.1 second to 999 hours
  • Number of Functions: 15 timing functions
  • Output Contact: 1 Changeover (SPDT / 1 CO)
  • Mounting: 35 mm DIN Rail
  • Module Width: 17.5 mm
  • Protection Class: IP20
  • Power Consumption: Approx. 4 VA maximum
Category:
SIEMENS

Description

The Siemens 7PV0732-1AV20 is a DIN-rail mounted multifunction electronic timer relay designed for industrial automation applications. It provides precise timing control with multiple operating modes and a wide universal supply voltage, making it suitable for control panels, motor control, conveyors, pumps, HVAC systems, and machine automation.
